Czapek Antarctique Révélation Skeleton | LE100

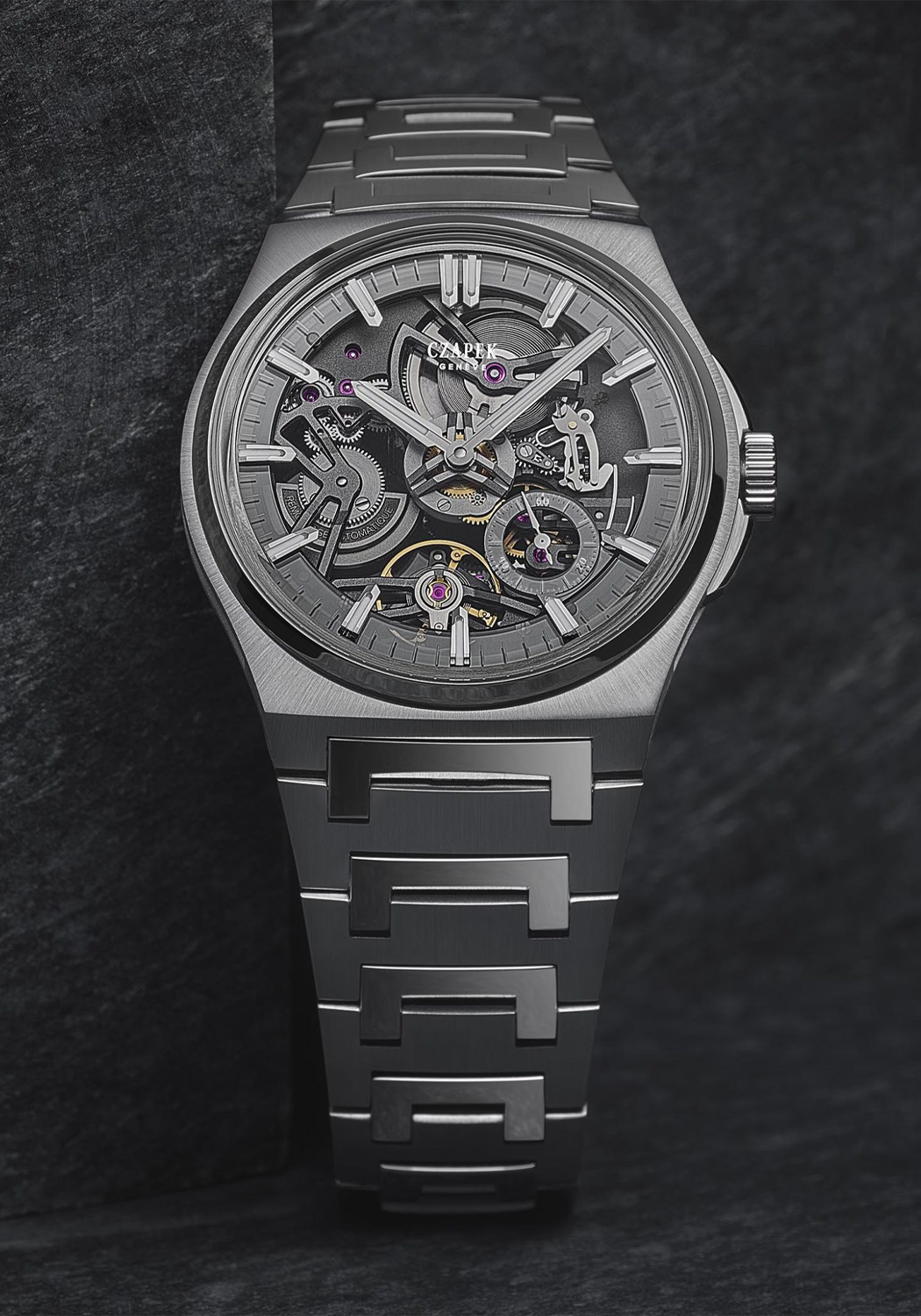

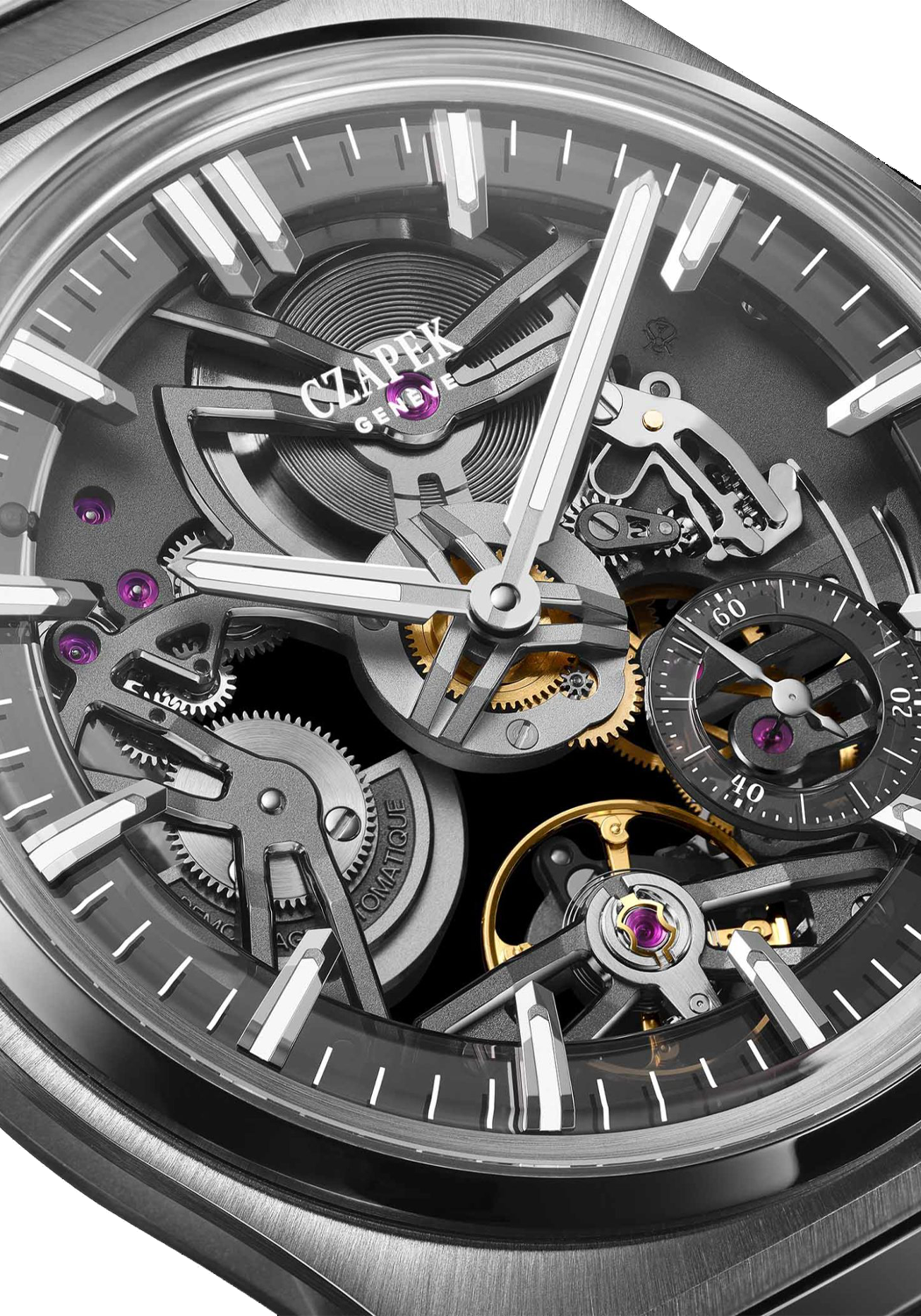

Czapek turns things upside down quite literally with the release of the groundbreaking Antarctique Révélation, a skeletonized timepiece for the watch obsessed. Playing true to its name, the Czapek Révélation reveals the inner workings of the SXH5 calibre, reinterpreted into the new SXH7. Throughout the design process a multitude of obstacles arose, with each pivot contributing to the final design. The escapement is completely reversed, the oscillating mass has been engraved on both sides, and the second hand required a redesign leading to a small seconds dial in sapphire glass. To maintain further visibility, a larger sapphire ring for both the hours and minutes were integrated into the final design.
Available in a limited edition of 100 pieces. Deliveries will start in 2025.
Ref. Antarctique Révélation
Like other watches in this collection, an exclusive quick-change system allows the wearer to switch out straps on the go. The integrated stainless steel bracelet can be switched out to a choice of calf leather or rubber straps. This watch also features a micro-adjustment system giving the wearer the control to extend the length instantly by millimeters.
TECHNICAL SPECIFICATIONS
Calibre
- SXH7: Czapek's in house self-winding mechanical skeletonized movement.
- 30mm diameter - 13 Lines 1/4
- 4.2 mm height
- Swiss lever escapement
- Variable-inertia balance fitted with four gold inertia blocks
Number of parts
152
Jewels
25
Frequency
4 Hz - 28,800 VpH
Power Winding System
Micro rotor with a 100% recycled platinum mass
Power reserve
>60 hours on one single barrel
Barrel torque
8.8 Nmm
Finishing
- Open ratchets
- Sandblasted black bridges
- Bevelling
- Straight-grained sides
- Six hand-chamfered inward angles
Functions
- Hours, Minutes, & Seconds
Measurements
- 40.5 mm diameter
- 10.6 mm height
Water resistance
120 m (12 atm)
Hands
Luminescent steel "Sword" hands
Case
- Stainless steel case
- Screwed down crown
Measurements
- 40.5 mm diameter
- 10.6 mm height
Glass
- Sapphire crystal glass-box with anti-reflective treatment ARDur©
- Sapphire crystal case-back with anti-reflective treatment
Strap

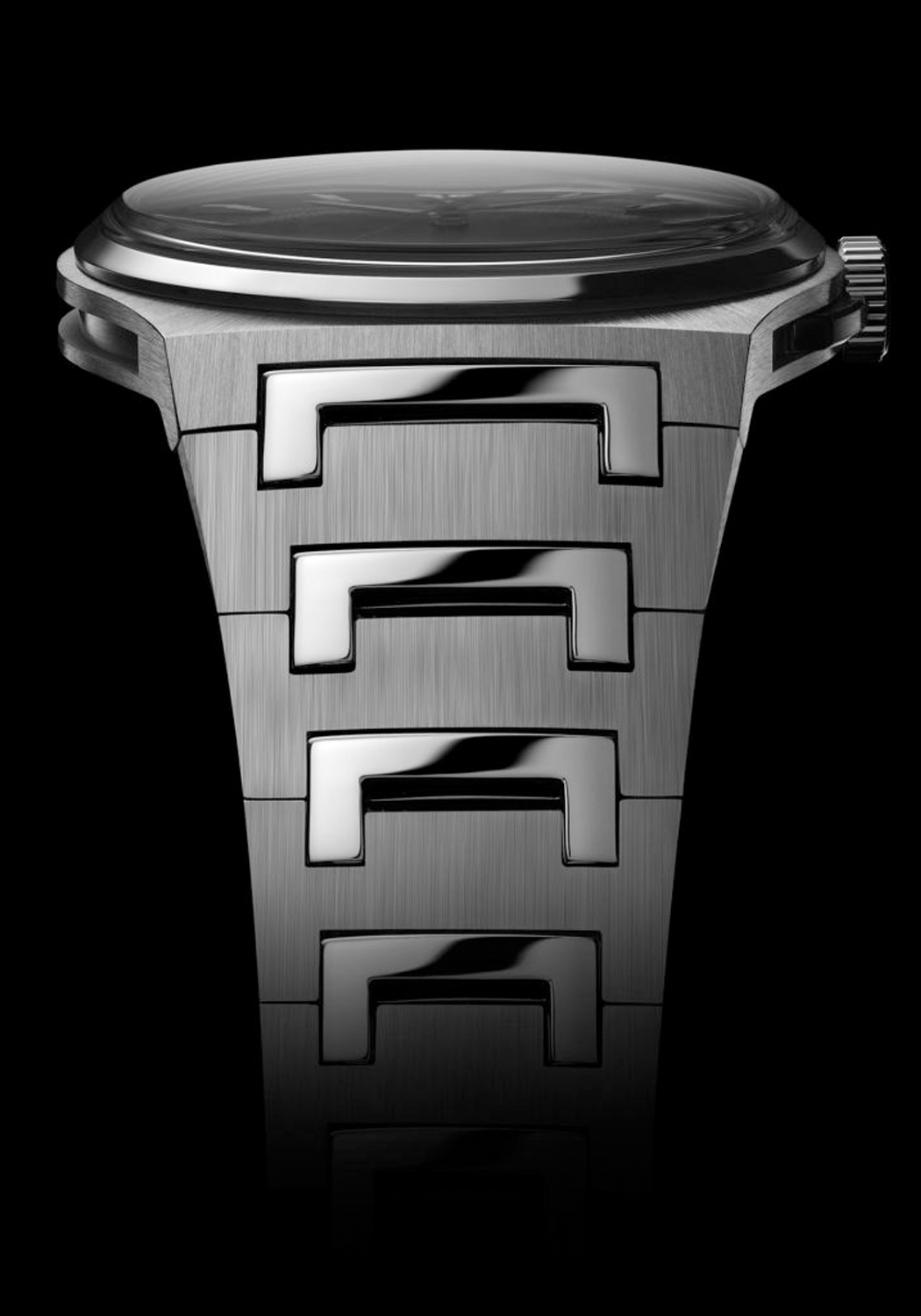

- Integrated stainless steel bracelet with Czapek exclusive "Easy Release "system
- Additional calf leather or rubber strap

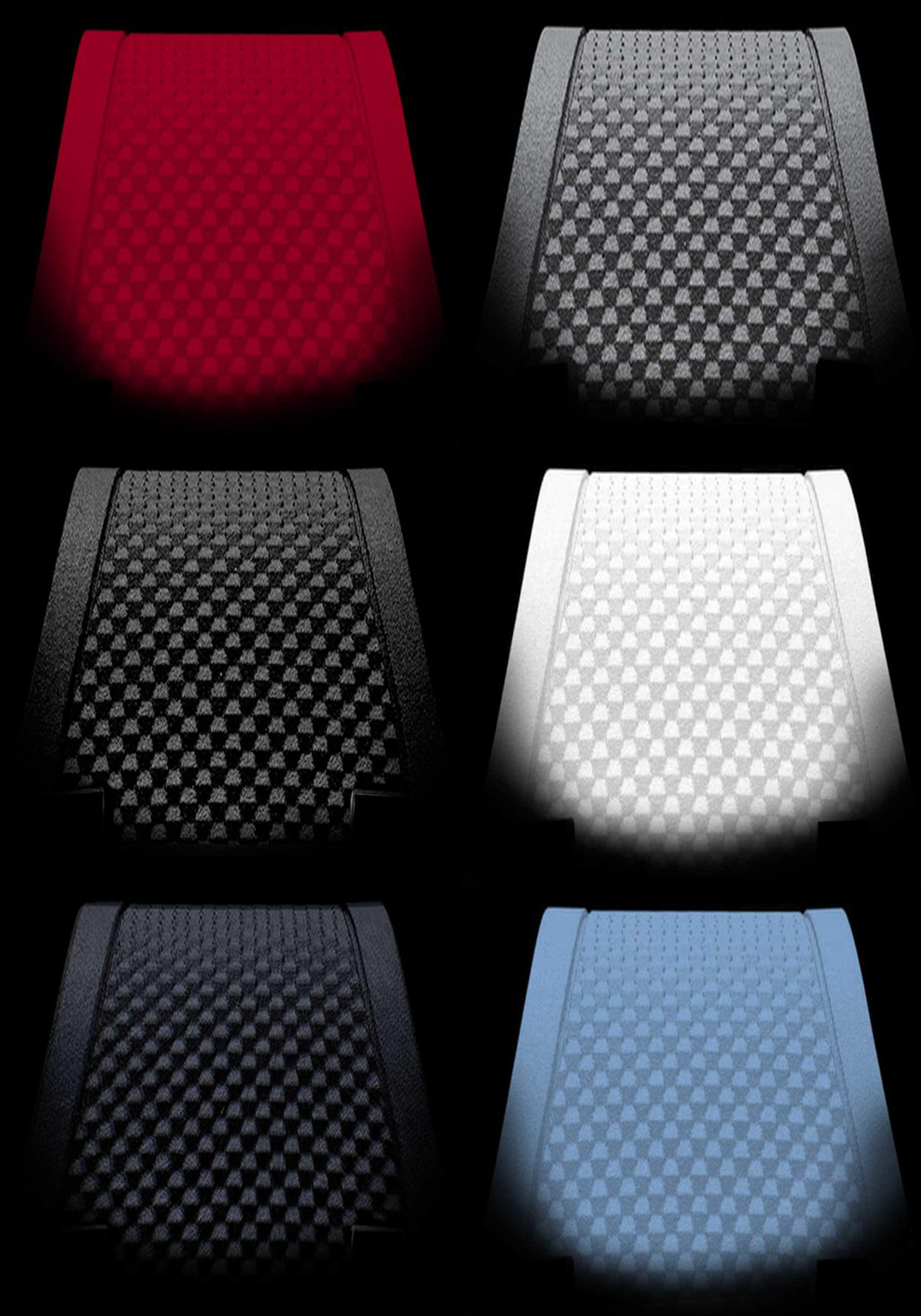

A large choice of straps is now offered to provide a maximum versatility and playful experience. 7 rubber straps whose pattern recalls the "Stairway to Eternity" design on the Passage de Drake dial are available in either black, white, dark blue, dark grey, light blue, sporty red, or orange (not shown). On top of that, a selection of soft calf straps with contrasting topstitches can be chosen.
